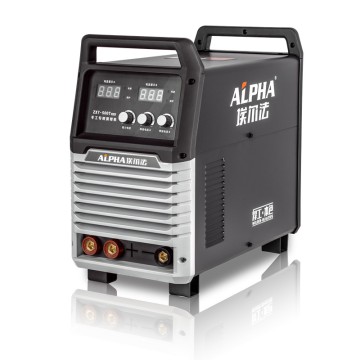

China Suppliers Factory Portable 400A ARC/MMA Welding Machine with Dual Module IGBT Inverter 300AMP Performance
Detailed Information
The MMA series arc welding machine is not only portable but also saves energy. It introduced the advanced IGBT/MOS (insulated gate bipolar transistor) and fast recovery diode as the main parts of controlling and delivering. IGBT/MOS can change 50Hz or 60Hz to 20KHz. Because the electric current can regulate, the arc electric current obtains excellent welding craft adaptability. It features superheat, overpressure, and automatic protection functions. The technique of the MMA inverter welder compared with the traditional technique has the advantage of saving energy, being lighter weight, and having a superior structural design. Perfect for outdoor decoration and fieldwork, it mainly welds low carbon steel, stainless steel, metal alloy steel, cast iron, etc. Because of the appropriate control of the lead arc electric circuit, it welds with high efficiency and stability.
ARC-ECONOMIC is a manual inverter welder series made using the world's most advanced inverter technology. Inverter MMA welding power supply is an inverter arc welding machine that emerged in the 1980s in the international market. The 50Hz/60Hz frequency is inverted to high frequency (over 100KHz) by MOSFET, then steps down voltage and rectifies current. The inverter arc welding power supply generates powerful DC welding current through PWM technology. Because the inverter technology of switch power is used, the dimensions and weight of the welding machine have reduced substantially, and efficiency has increased by 30%. Stability, reliability, lightness, energy-saving, and low electromagnetic noise are the key characteristics of this welding machine series. The inverter welding machine is highly praised by specialists as a revolution in the welding field.
The welding machine obtains the 220V power frequency alternating current through switch SW101. After passing the inductance coil filter for the single plane rectification bridge MDQ3504*2 rectification, it uses the electric capacity C1-C4 filter to turn the direct current. By way of the IGBT/MOS composition bridge type inverter, the current is converted to a 20KHz alternating current, passing through the intermediate frequency transformer T1 live pressure, and restores the diode DK1-DK6 rectification quickly. At last, it filters through the output reactor L101 and outputs a steady direct-current power supply for optimal welding performance.
Main Features
- All movements adopt the latest and mature IGBT full-bridge inverter technology.
- The generator can be used directly without adding a capacitor board.
- Full network model, can input any voltage, no voltage conversion required.
- Acid/alkaline electrodes, stainless steel electrodes for stable welding.
- Complete undervoltage, overcurrent, overheating and other protection functions, safe and secure.
- The thrust current is continuously adjustable, effectively solving the problems of sticking welding rod and arc interruption.
- Standard three-proof design, suitable for various conventional harsh environments, simple and convenient to operate.
- Application areas: hardware processing / decoration / outdoor installation / building construction and other civil fields.
Working Connection Diagram
Product Parameters
| Model | ZX7-400E | ZX7-500E | ||||
| Input Voltage | AC 220V 2Phase | AC 380V 2Phase | AC 380V 3Phase | AC 220V 2Phase | AC 380V 2Phase | AC 380V 3Phase |
| Input Frequency | 50Hz/60Hz | 50Hz/60Hz | ||||
| Rated Input Capacity | 9.3Kva | 14.1Kva | 10Kva | 20.5Kva | ||
| Rated Input Current | 42A | 37A | 21A | 46A | 54A | 31A |
| No Load Voltage | 74V | 67V | 82V | 72V | ||
| Rated Output | 220A/28.8V | 300A/30V | 300A/30V | 240A/29.6V | 400A/36V | 400A/36V |
| Output Current Range | 30-400A | 30-500A | ||||
| Rated Duty Cycle | 40% | 40% | ||||
| Efficiency | 80% | 80% | ||||
| Insulation Class | F | F | ||||
| Shell Protection Grade | IP21S | IP21S | ||||
| Suggested Electrode Max. | Φ2.5-4.0mm | Φ2.5-5.0mm | Φ2.5-4.0mm | Φ2.5-6.0mm | ||
| Dimensions | 340*190*330mm | 370*200*355mm | ||||
Installation Attentions
♦ Input voltage: 130V-560V 50/60Hz
♦ Input cable: 4mm², length ≤ 3m
♦ Power switch: 63A
♦ Output cable: 25-35mm²
♦ Ambient temperature: -10℃~+40℃
♦ Usage condition: No blockage on air inlet & outlet. No sunlight exposure. Pay attention to dust prevention.
Standard Accessories
1x Electrode Holder
1x Ground Clamp
1x Welding Mask
1x Brush/Hammer
Optional Accessories
Welding Helmet
Welding Gloves
Electrodes E6013
Lift TIG TORCH
Frequently Asked Questions (FAQ)
What core technology do the MMA series welding machines use?
The MMA series adopts the latest and mature IGBT full-bridge inverter technology, converting 50Hz/60Hz current to high frequency (over 100KHz) to deliver stable and efficient DC welding current.
Can these welding machines be powered by a generator?
Yes, the machine is designed to be used directly with a generator without requiring the installation of an additional capacitor board.
What types of metal materials can be welded with this machine?
It is highly suitable for welding low carbon steel, stainless steel, metal alloy steel, and cast iron, making it ideal for civil construction, hardware processing, decoration, and outdoor fieldwork.
What is the rated duty cycle and efficiency of the ZX7-400E and ZX7-500E models?
Both models feature a rated duty cycle of 40% and a high operating efficiency of 80%, ensuring optimal performance and energy savings.
What are the input voltage requirements and recommended cable size?
The machines support a wide input voltage range of 130V-560V at 50/60Hz. The recommended input cable is 4mm² with a length of 3 meters or less.
What safety and protection features are integrated into these welders?
They come equipped with complete protection functions, including undervoltage protection, overcurrent protection, and overheat protection, along with a standard three-proof design for harsh environments.
